Automatic Weighing Vertical Packaging Machine System | Integrated Full-Automatic Packaging Solution

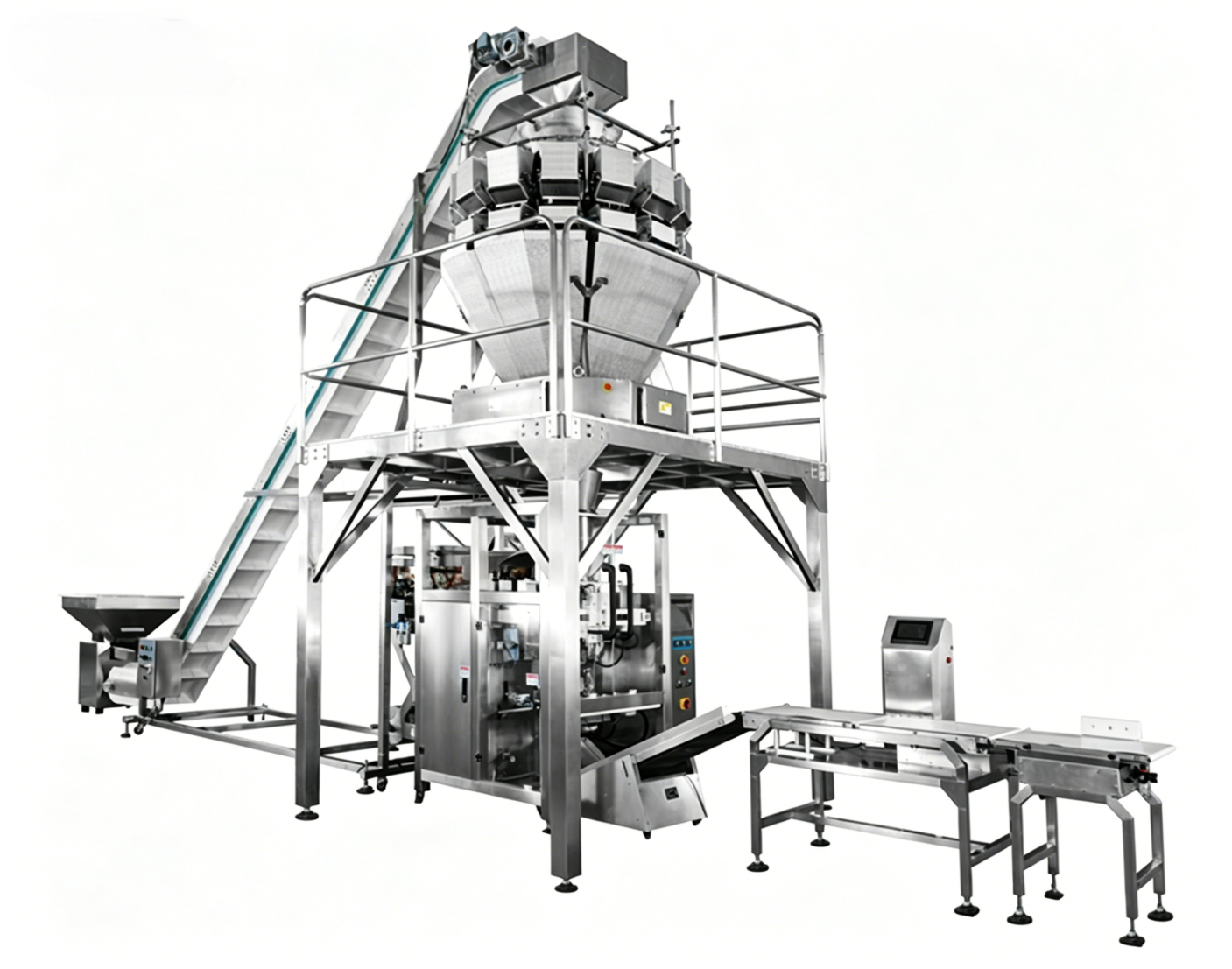

The Automatic Weighing Vertical Packaging Machine System is a comprehensive automated solution that integrates multiple functional modules to cater to the diverse packaging requirements of various products. Its core structure comprises five key components, each essential to ensuring stable, efficient, and reliable operation:

1. Conveying Unit: This unit is dedicated to the stable and efficient transportation of raw materials to the weighing and packaging stations. It offers multiple configurable options to adapt to different material properties and production scenarios, including Z-type elevator (also referred to as Z-type bucket elevator, characterized by high throughput and stable operation), high-inclination elevator, single-head elevator, and vacuum feeder—all engineered to minimize material loss and ensure continuous, uninterrupted feeding.
2. Weighing Unit: As the core component of the system, the weighing unit ensures high-precision weight control to comply with strict industry standards and product specifications. It provides three flexible weighing configurations: measuring cup (suitable for regular-shaped, free-flowing materials), combination weigher (multi-head design for high-speed, high-accuracy weighing of granular and irregular products), and linear weigher (optimized for viscous, sticky, or frozen materials prone to clumping).
3. Working Platform: A robust, ergonomically designed working platform is provided to facilitate equipment maintenance, parameter calibration, and daily operation, ensuring operator safety and operational convenience.
4. Vertical Packaging Machine: The core packaging unit is available in three models (430, 630, 820) to accommodate different bag sizes, covering a wide range of packaging needs from small to large formats. It adopts advanced vertical form-fill-seal (VFFS) technology, enabling one-step automatic bag forming, filling, sealing, and cutting, with stable performance and a sleek, professional packaging finish.
5. Finished Product Conveyor Line: Upon completion of packaging, finished products are automatically transferred to subsequent processes (such as secondary packaging, warehousing, or quality inspection) via the finished product conveyor line, realizing a fully automated workflow and reducing manual handling requirements.

In addition to the core components, the system can be equipped with optional auxiliary equipment based on specific production requirements, including coding machines (for printing production dates, batch numbers, and other critical information), thermal transfer machines (for high-definition, durable marking), weight detection machines (for identifying non-conforming products and providing real-time statistical data), and metal detection machines (for detecting metal contaminants in materials, ensuring product safety and compliance). These optional devices further enhance the system’s functionality and adaptability, meeting the personalized needs of different industries and applications.

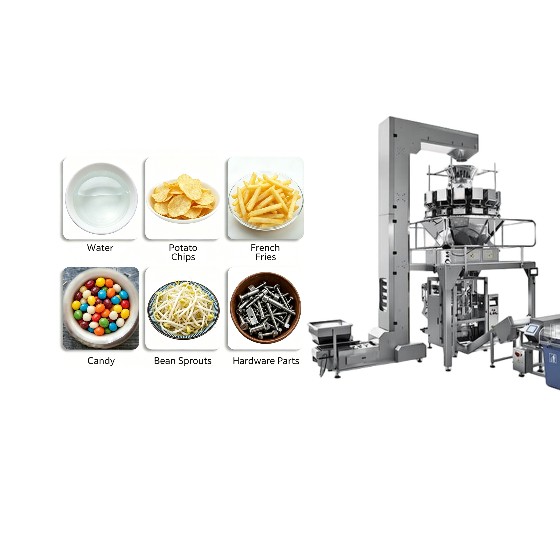

A standout advantage of this system is its user-friendly operation—only one operator is required to monitor equipment performance, adjust parameters, and handle potential abnormalities. This significantly reduces labor costs and minimizes human errors associated with manual operation. The entire system is equipped with a PLC control system and an intuitive human-machine interface (HMI), facilitating easy operation and maintenance even for personnel with limited professional experience. Boasting high stability, efficiency, and precision, it is widely utilized for the packaging of granular, powdery, and small block products, delivering substantial economic benefits to enterprises.

Technical Parameters
