Automatic Small Sachet & Special-Shaped Bag Packaging Machine | 3/4-Side Seal / Back Seal
|
Technical Parameters |
|||
|
Sealing Type |
3/4-Side Seal /Back Seal (serrated sealing cutter) |
3-Side Seal /Back Seal (straight sealing cutter) |
Special-shaped bag |
|
Bag size |
(L）30-170mm (W) 15-130mm |
(L) 30-180mm (W) 15-75mm |
(L) 30-180mm (W)20-80mm |
|
Film thickness |
0.04-0.12mm（confirm when order） |
||
|
Packing speed |
20-80bags/min |
20-60bags/min |
15-35bag/min |
|
Air consumption |
0.65Mpa, 0.4m³/min |
||
|
Packing material |
All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order) |
||
|
Power supply |
220V 50-60Hz |
||
|
Power |
1.4Kw |
2.3Kw |
3.0Kw |
|
Dimension |
L810x W630x H1550mm |
L780x W1210 x H1687mm |
L958x W1300x H2417mm |
|
Weight |
235Kg |
245Kg |
720Kg |

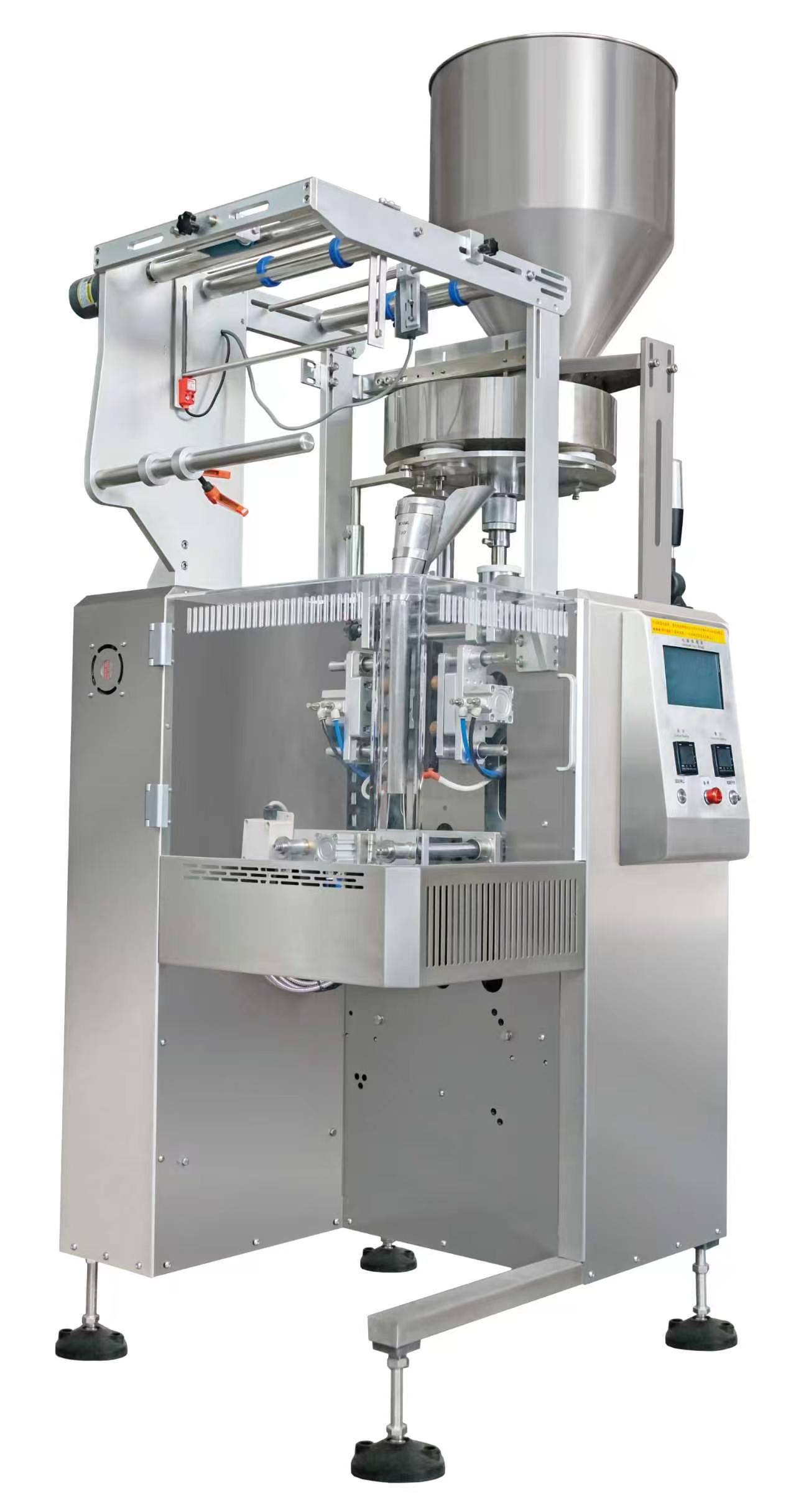

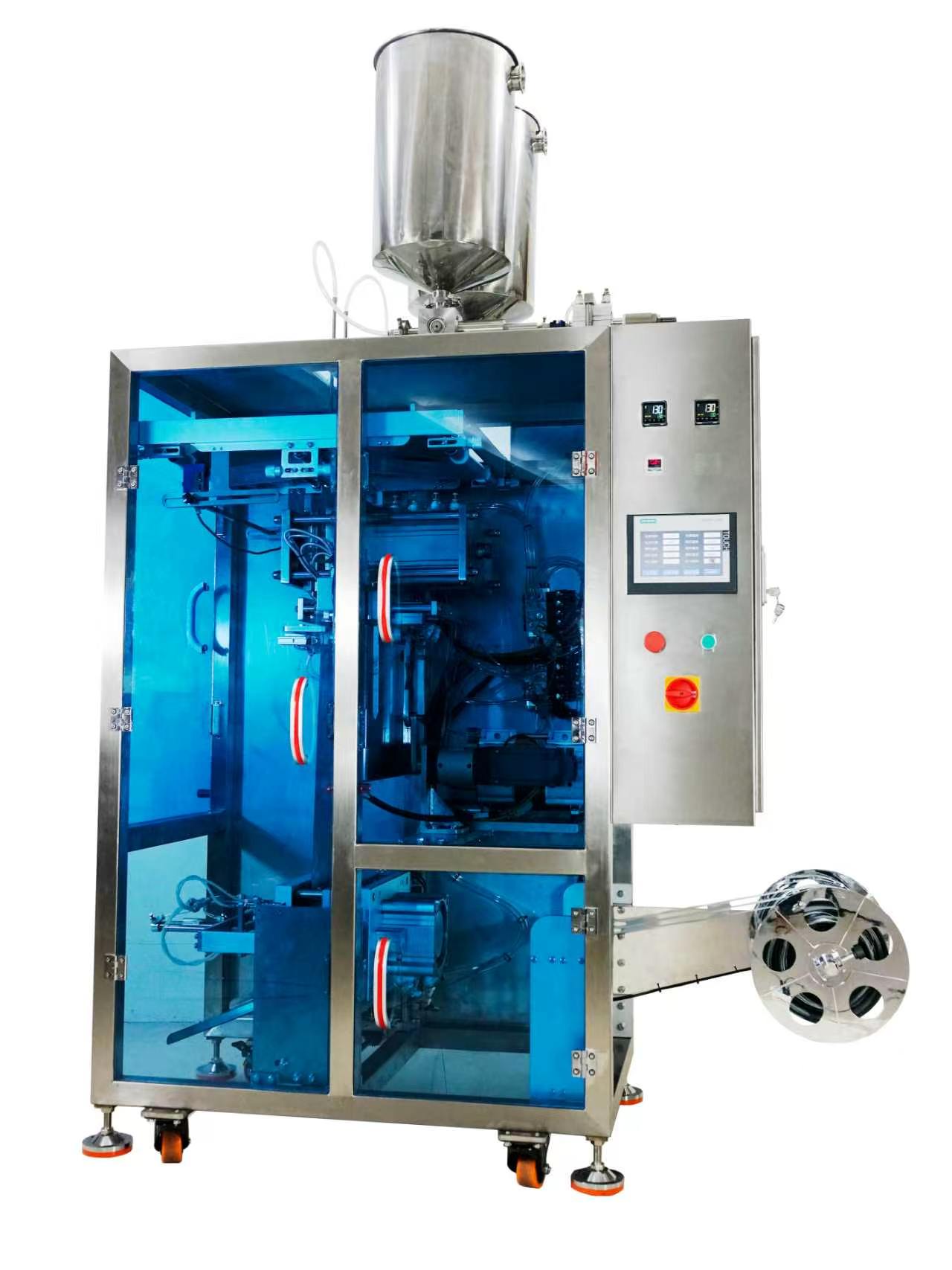

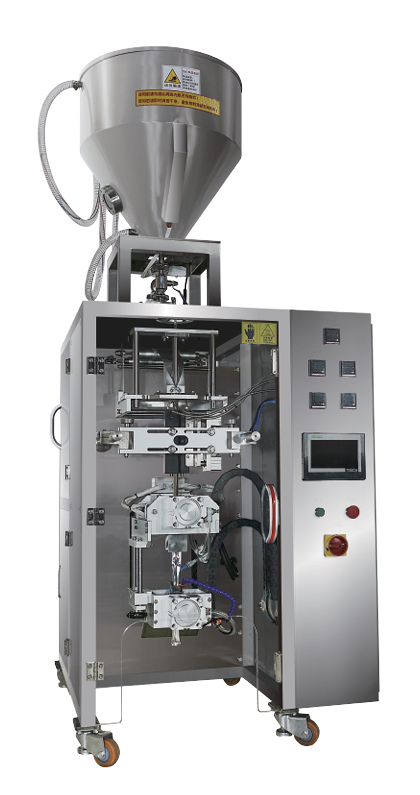

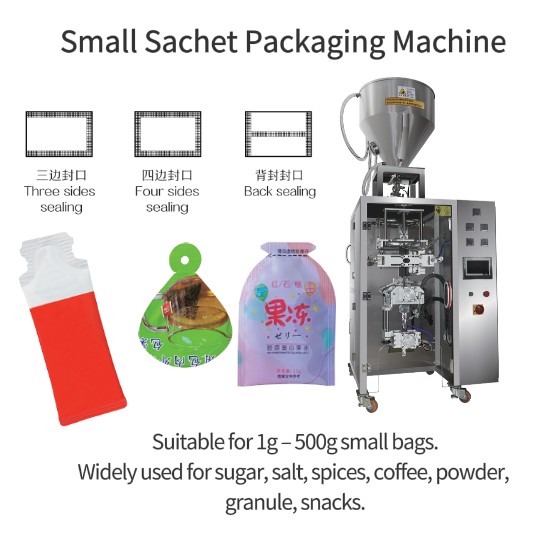

This automatic sachet packaging machine series integrates bag forming, filling, sealing, cutting and counting. It supports 3-side seal, 4-side seal, back seal and special-shaped bag production, with serrated cutter and straight cutter optional.
Suitable for various laminated films including PET/PE, PET/AL/PE, Nylon/PE, etc. The machine runs stably with adjustable speed, compact structure, small occupation and easy operation.
It is widely used for food, condiment, daily chemical, pharmaceutical and other industries for small-dose sachet packaging.
