Puffed or Flat Bags? One Sponge's Position Decides Inflation vs Exhaust

Puffed or Flat? The Sponge Decides

One Sponge's Position = Inflation or Exhaust

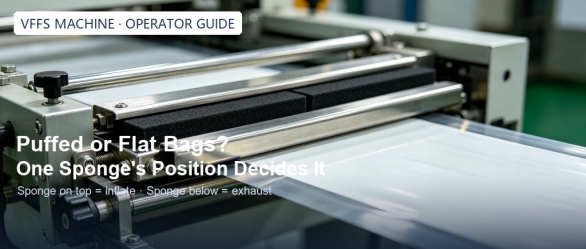

Cover: one sponge, two bag styles

Same machine: chips come out puffed and springy; detergent comes out flat and tight. The difference? One tiny pressure sponge on the end-seal jaw.

1. Top or Bottom? One Sentence

“The pressure sponge position decides inflate vs exhaust: for inflated bags, mount both sponges on the upper surface of the jaw connecting base; for exhausted bags, mount them on the lower surface.”
— VFFS manual — end-seal notes

• Upper surface → inflated (puffed) — air stays inside, cushioned

• Lower surface → exhausted (flat) — air squeezed out, compact

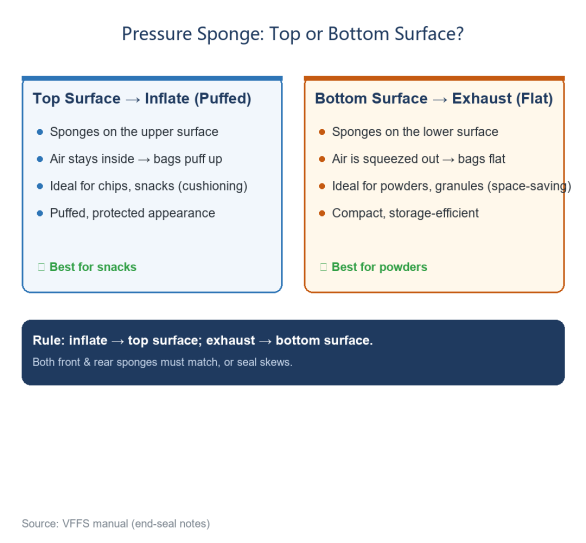

Fig.1: Sponge top vs bottom (from manual, end-seal notes)

2. Which Products Need Which?

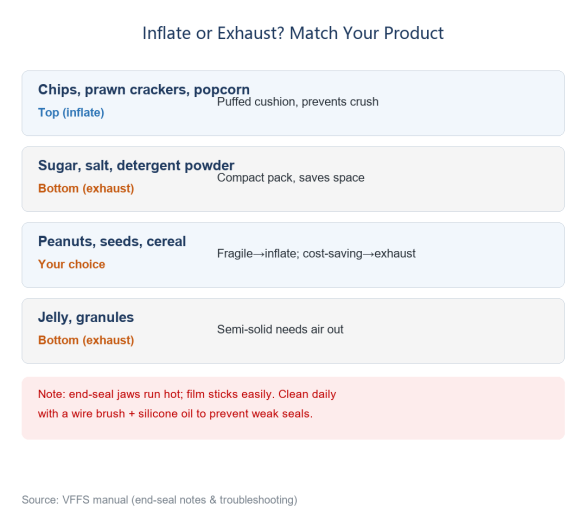

Table 1: Product-to-sponge selection

Fig.2: Product selection table (from manual & troubleshooting)

⚠ Both front and rear sponges must be on the same surface. Mixed positions cause seal skew and uneven film stress.

3. Don't Forget Jaw Cleaning

The manual warns: end-seal jaw surfaces run hot, so film sticks easily. Without timely cleaning, bags won't seal properly.

✔ After each run, use a wire brush with silicone oil to remove film residue from jaws, then apply a thin silicone oil coat to prevent sticking.

Final Thoughts

Switching products? Decide puffed or flat first —upper = inflate, lower = exhaust. That's it.

Next: how to adjust the former guide (edge folder) to fix twisted seals and film burns.
