Complete Introduction to Vertical Form Fill Seal (VFFS) Machines
Complete Introduction to Vertical Form Fill Seal (VFFS) Machines

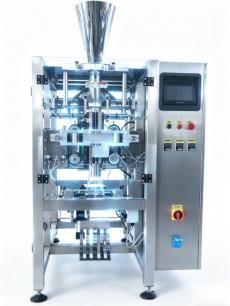

Vertical Form Fill Seal (VFFS) is an automated packaging system that converts flat roll film into finished pouches in a single continuous vertical process: forming, filling, and sealing. Its compact vertical design makes it the industry-standard solution for packaging snacks, powders, liquids, and all free-flowing products. Using vertical pouch forming, gravity filling, and synchronized sealing/cutting, VFFS machines automate the full workflow from roll film to finished bags for maximum efficiency.
1. Core Components
Unwinding & Traction System
Controls roll film feeding, tension, servo film pulling, and photoelectric color mark registration. Ensures stable, accurate film transport without wrinkles or misalignment.
Collar Former
Folds flat film into a tube around the filling tube, creating the basic pouch shape for filling and sealing.
Longitudinal Sealing (Side Seal)
Uses heated sealing wheels or bars to heat-seal the vertical overlap of the film tube, creating a strong, continuous vertical seal.
Transverse Sealing & Cutting Unit
Dual gripper assembly that seals the top of the finished pouch, seals the bottom of the next pouch, and cuts the finished bag in one synchronized motion.
Metering & Filling System
Equipped with application-specific dosing devices: auger fillers, cup fillers, multihead weighers, or piston pumps. Delivers precise filling for all product types.
PLC Control System
The “brain” of the machine that synchronizes film advance, sealing, cutting, filling, and coding for smooth, stable, high-speed operation.
2. Full Working Cycle (All-in-One Forming)
Film Feeding & Forming
Roll film is guided, tensioned, and registered via color mark sensors, then formed into a tube by the collar former around the filling tube.
Longitudinal Sealing
Heated seal bars bond the vertical overlap into a secure tube, either lap seal or fin seal.
Bottom Transverse Sealing
Heated horizontal jaws close to seal the bottom of the pouch.
Metered Filling
Jaws open; the pouch drops slightly by gravity, and the dosing system fills the pouch with a precise product amount.
Top Sealing & Cutting
Horizontal jaws close again to seal the top of the filled pouch and form the bottom of the next pouch. A built-in knife cuts the finished bag free.
Pouch Delivery & Optional Finishing
Finished bags move to the discharge conveyor. Optional functions include date coding, labeling, and nitrogen flushing.
3. Main Machine Types
Intermittent Motion VFFS
Film pauses briefly for sealing and cutting. Simple structure, high filling accuracy, ideal for medium-speed applications up to 120 bags/min.
Continuous Motion VFFS
Sealing jaws move vertically with the film for “on-the-fly” sealing. No pausing, extremely high speed up to 300 bags/min for mass production.
Pneumatic & Servo-Driven VFFS
Pneumatic models: lower cost, easy operation.
Servo-driven models: ultra-precise positioning, fast format changeover, ideal for versatile packaging.
4. Optional Configurations
Gas Flushing (Nitrogen Filling)
Injects nitrogen to displace oxygen, extending shelf life — ideal for snacks, dried goods, and other oxygen-sensitive products.
Date Coding
Integrated printer for batch numbers, production dates, expiration dates, and traceability information.
Special Pouch Attachments
Includes gusset devices, stand-up pouch accessories, easy-tear notches, and hole punches to produce gusseted bags, stand-up pouches, and more.
5. Key Technical Features
Sync Sealing & Cutting
One jaw movement completes top sealing, cutting, and bottom sealing — the core technology for high efficiency.
Color Mark Registration
Photoelectric sensors track film marks for accurate bag length and pattern alignment, ensuring uniform appearance.
Flexible Filling Compatibility
Granules & snacks: cup fillers, vibratory feeders, multihead weighers.
Powders & seasonings: auger fillers.
Liquids & pastes: piston pumps or flow meters.
Independent Temperature Control
Separate adjustable temperature for longitudinal and transverse seals, compatible with PE, composite films, aluminum foil, and more — strong seals without film burn-through.
6. Typical Pouch Styles
Back Seal Pouch (Center Seal)
The most common style; vertical seal on the back. Versatile, cost-effective, suitable for most products.
Three-Side Seal Pouch
Sealed on left, right, and bottom. Flat profile, excellent sealing, ideal for small packages.
Four-Side Seal Pouch
Sealed on all four sides. Maximum seal integrity, widely used for single-serve seasonings, snacks, and samples.
Why Choose VFFS Machines
VFFS packaging machines offer high automation, wide compatibility, and stable performance, widely used in food, chemical, pharmaceutical, and other industries. They can be customized with adjustable parameters and optional attachments to match any product (powder, granule, liquid) and production demand.
